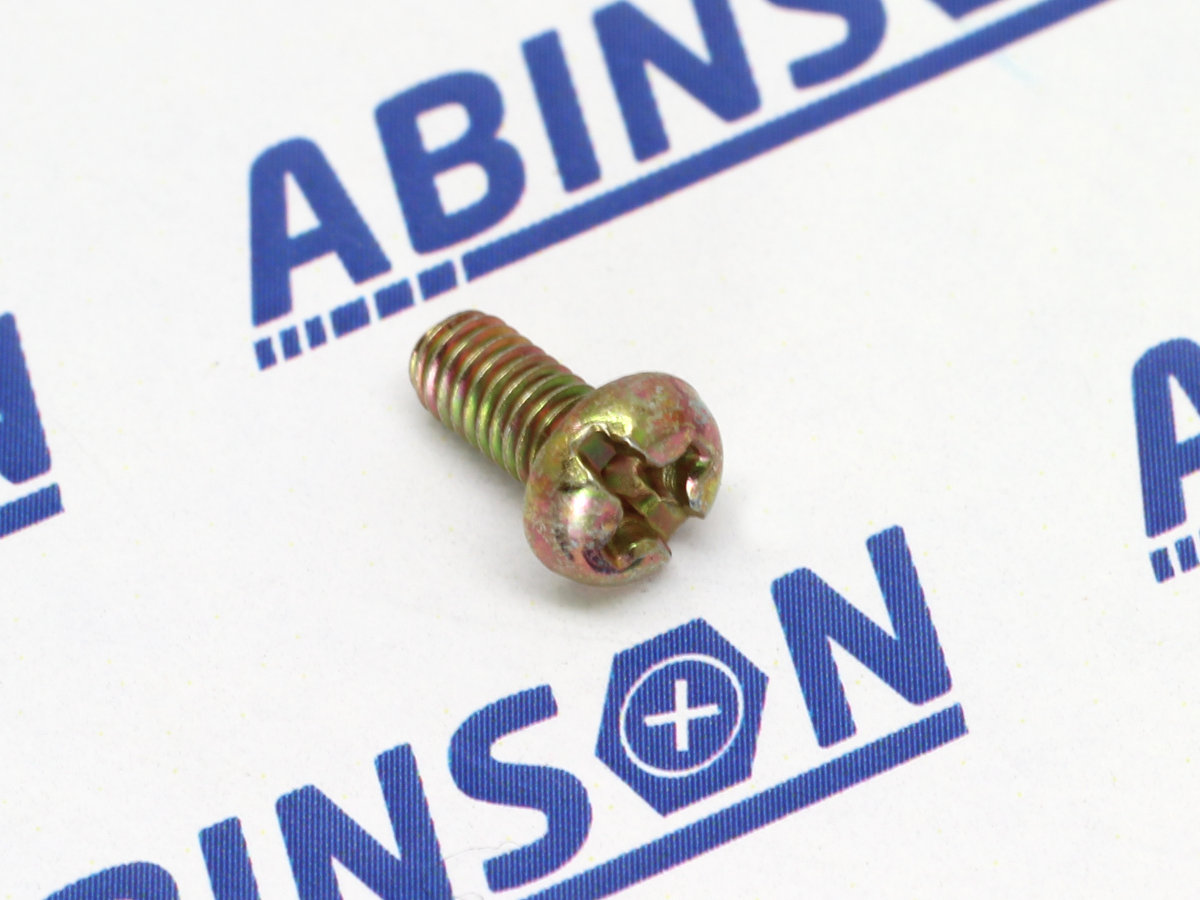

Pan Head M3 (3mm) x 6mm MS Phillips Steel MS Machine Screws
Pan head screws have a gently rounded top surface and curved sides with a flat bearing surface under the head. Predominantly used on screw products where a flat bearing surface is required or on the other hand, where a countersunk is not required.
Product Code/SKU:
15010
Price (each):
Rs.0.65/-
Specifications
Specifications for Pan Head M3 (3mm) x 6mm MS Phillips Steel MS Machine Screws
Thread Pitch
0.5 mm
H-Head
5.5 mm
W-Width
3 mm
Thread
3 mm M3 mm
L-Length
6 mm
T-Head Length
2.5 mm
Material
Mild Steel MS
| P.Code | Thread mm |
Thread Pitch mm |
L-Length mm |
H-Head mm |
T-Head Length mm |
W-Width mm |
Material |
|---|---|---|---|---|---|---|---|
| 15010 | 3 mm M3 | 0.5 | 6 | 5.5 | 2.5 | 3 | Mild Steel MS |
