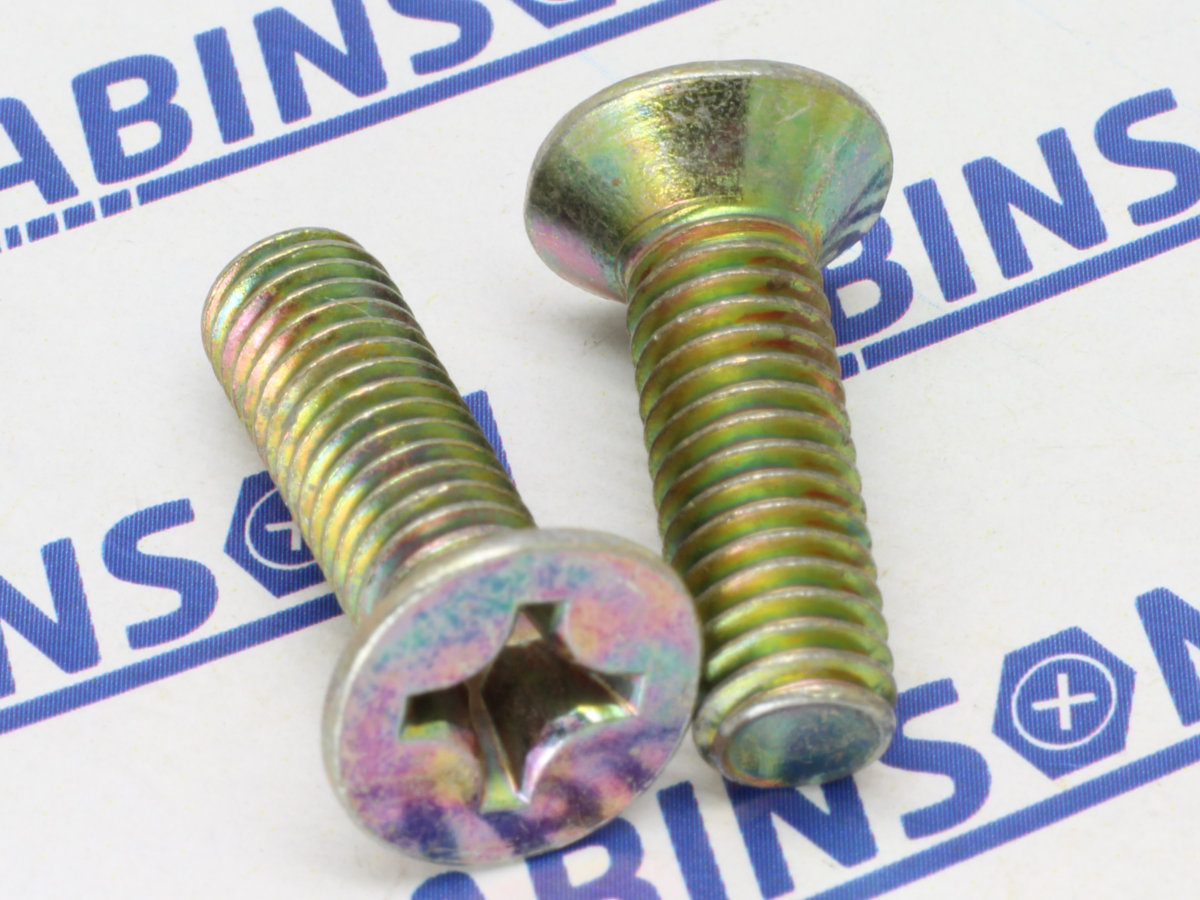

Counter Sunk CSK M6 (6mm) x 20mm Steel MS Phillips Plus Screw

Angled under the head, these metric screws fit in countersunk holes and sit flush with the surface of your part. Length is measured from the top of the head.
Product Code/SKU:
15203
Price (each):
Rs.7.00/-
In Stock
Dispatched same day if ordered before 1:00 PM (Excluding Sunday & National holidays), then courier normally takes 2-4 days.
Quantity
Price
Less
Ext.Price
1-49 :
Rs.7.00/-
0%
Rs.7.00/-
50-99 :
Rs.6.30/-
-10%
Rs.315/-
100-249 :
Rs.5.95/-
-15%
Rs.595/-
250-499 :
Rs.5.74/-
-18%
Rs.1,435/-
500-999 :
Rs.5.67/-
-19%
Rs.2,835/-
1000+ :
Rs.5.60/-
-20%
Rs.5,600/-
Multiples of 10 pcs
Quantity:

Specifications

Specifications for Counter Sunk CSK M6 (6mm) x 20mm Steel MS Phillips Plus Screw
L-Length
20 mm
Thread
6mm M6 mm
Thread Pitch
1.0 mm
T-Head Length
4 mm
H-Head
11 mm
W-Width
6 mm
P.Code L-Length
mm		 Thread
mm		 Thread Pitch
mm		 H-Head
mm		 T-Head Length
mm		 W-Width
mm
15203 20 6mm M6 1.0 11 4 6

Angled under the head, these metric screws fit in countersunk holes and sit flush with the surface of your part. Length is measured from the top of the head.

Zinc-plated screws have a layer of zinc that protects the steel from rust in wet environments and extends the life of the screw.

DIN 925 and ISO 2009 (formerly DIN 963) screws meet international standards for fastener dimensions. ISO 2009 and DIN 963 are functionally equivalent with slight differences in head height, diameter, and thread length.
