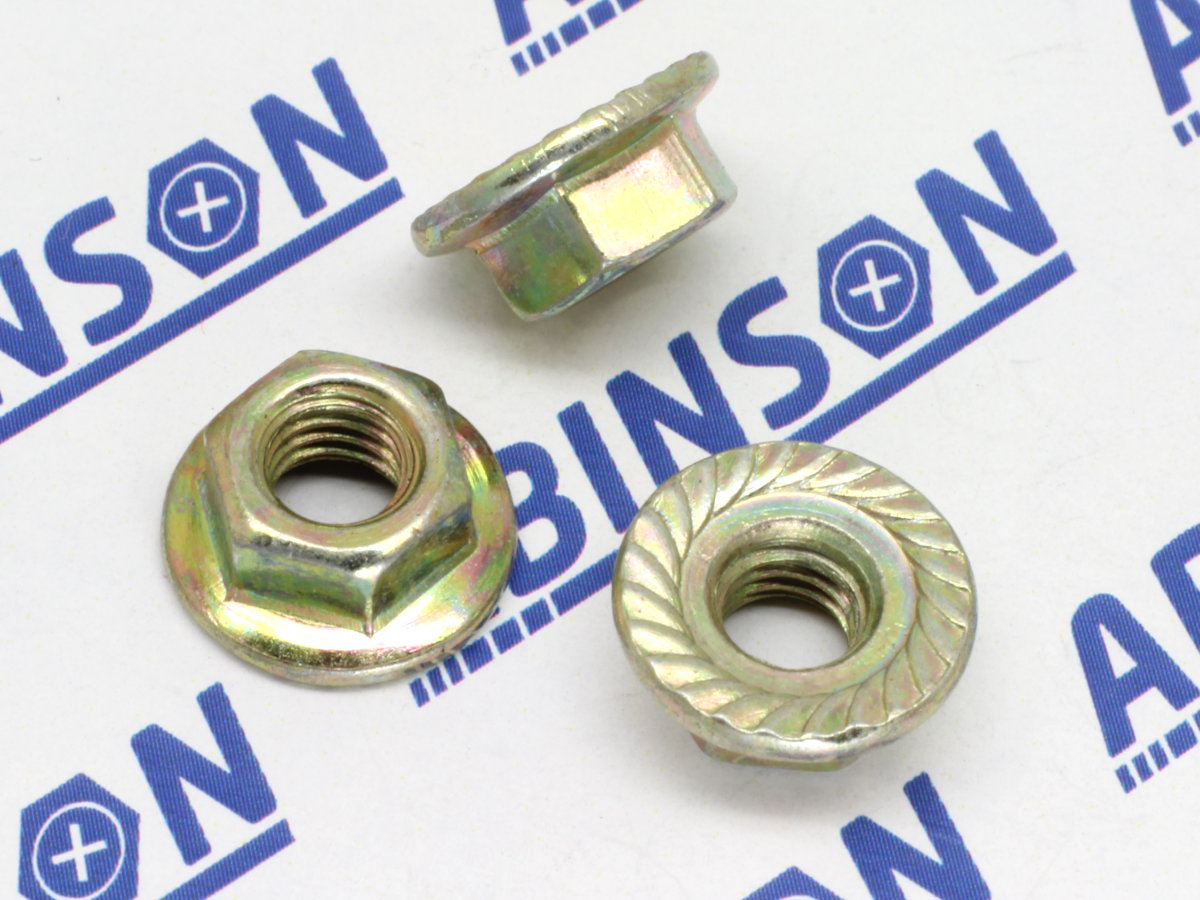

Flange Locknut M5 (5mm) x 0.8mm Nut Serrated Mild Steel MS Zinc Plated
Serrated Flange Locknuts have serrations on the underside of the flange preventing the nuts from loosening. Also known as collar nuts, they do not require a washer. Instead, the flange spreads the holding force across a wide area.
Product Code/SKU:
15030
Price (each):
Rs.2.00/-
In Stock
Dispatched same day if ordered before 1:00 PM (Excluding Sunday & National holidays), then courier normally takes 2-4 days.
Dispatched same day if ordered before 1:00 PM (Excluding Sunday & National holidays), then courier normally takes 2-4 days.
Specifications
Specifications for Flange Locknut M5 (5mm) x 0.8mm Nut Serrated Mild Steel MS Zinc Plated
Thread
5mm M5 mm
W-Width
8 mm
T-Flange Thickness
1.5 mm
Material
Mild Steel
Thread Pitch
0.8 mm
F-Flange Width
11.5 mm
H-Height
5 mm
| P.Code | Material | Thread mm |
Thread Pitch mm |
W-Width mm |
F-Flange Width mm |
T-Flange Thickness mm |
H-Height mm |
|---|---|---|---|---|---|---|---|
| 15030 | Mild Steel | 5mm M5 | 0.8 | 8 | 11.5 | 1.5 | 5 |
