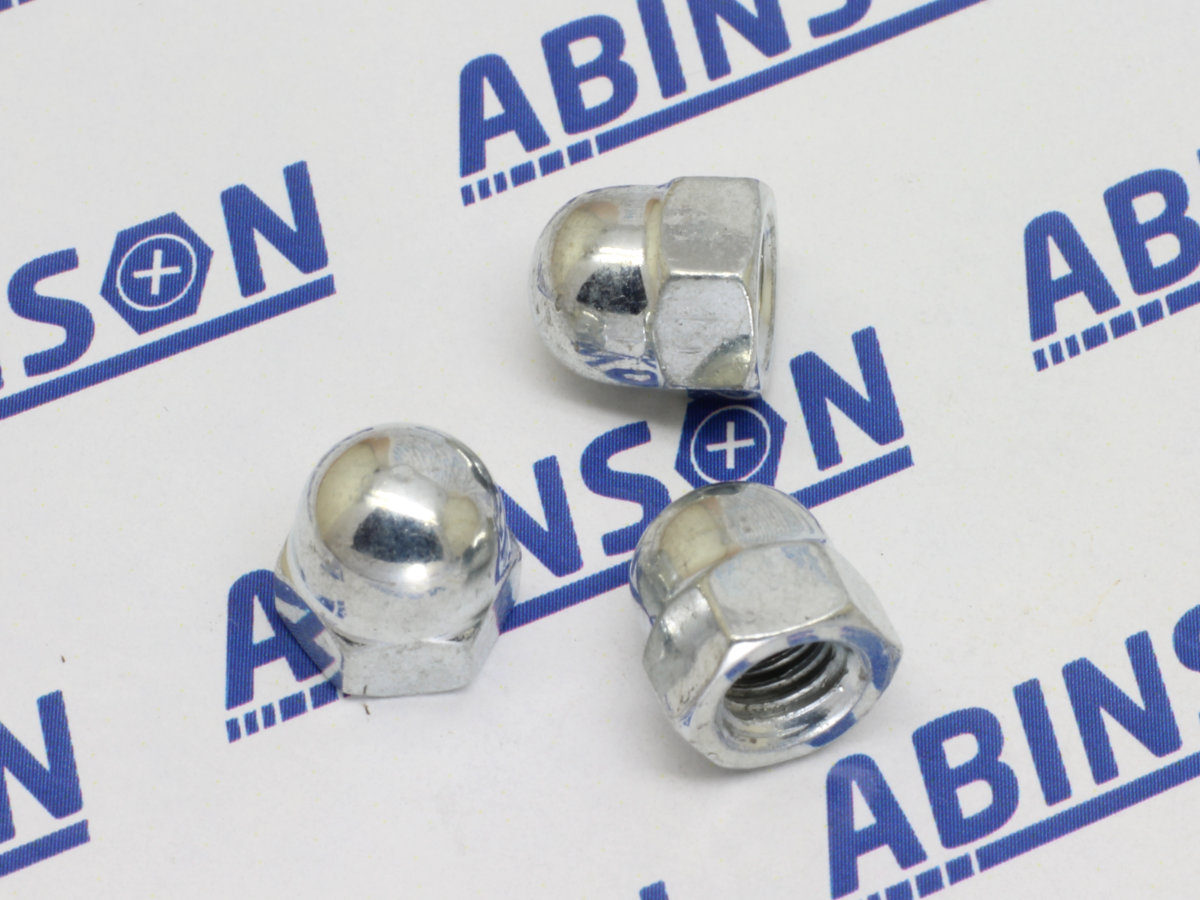

Dome Nut M5 (5mm) 0.8mm Mild Steel MS Zinc Plated

Often referred to as acorn nuts, these nuts have a smooth rounded head that covers and protects threads while providing a finished appearance. Use them in light duty fastening applications, such as securing access panels.
Product Code/SKU:
15042
Price (each):
Rs.6.00/-
In Stock
Dispatched same day if ordered before 1:00 PM (Excluding Sunday & National holidays), then courier normally takes 2-4 days.
Quantity
Price
Less
Ext.Price
1-9 :
Rs.6.00/-
0%
Rs.6.00/-
10-49 :
Rs.5.70/-
-5%
Rs.57/-
50-99 :
Rs.5.40/-
-10%
Rs.270/-
100-499 :
Rs.5.10/-
-15%
Rs.510/-
500-999 :
Rs.4.92/-
-18%
Rs.2,460/-
1000+ :
Rs.4.80/-
-20%
Rs.4,800/-
Quantity:
Dome Nut also referred to as crown hex nut, blind nut, cap nut, domed cap nut, or acorn nut (UK), is a nut that has a domed end on one side. When used together with a threaded fastener with an external male thread, the domed end encloses the external thread, either to protect the thread or to protect nearby objects from contact with the thread. In addition, the dome gives a more finished appearance.

Specifications

Specifications for Dome Nut M5 (5mm) 0.8mm Mild Steel MS Zinc Plated
Thread
5mm M5 mm
W-Width
8 mm
Depth
7 mm
Material
Mild Steel
Thread Pitch
0.8 mm
H-Height
9 mm
P.Code Material Thread
mm		 Thread Pitch
mm		 W-Width
mm		 H-Height
mm		 Depth
mm
15042 Mild Steel 5mm M5 0.8 8 9 7
