Closed End Wire Connector
Closed end connectors are crimp-able for a quick, inexpensive, easy and permanent electrical connection of two or more wires. You simply insert your wires all the way into the closed end connector and press crimp.
Crimping connectors
![](/x/ron/y/c/crimping-wire-crimp-caps.jpg)
Using Connectors
![](/x/ron/y/c/using-White-Closed-End-Wire-Connectors.jpg)
Showing 1-3 of 3 products.
![](/x/ron/s/25.jpg)
Dimensions |
|||||||
---|---|---|---|---|---|---|---|
P.Code | Wire Range mm |
d1 mm |
E mm |
L mm |
d mm |
D mm |
|

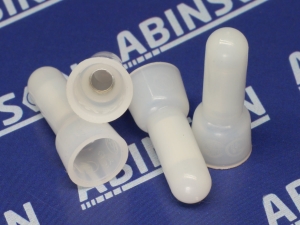

15216 | 0.5-1.75 | 5 | 6 | 20.1 | 2.4 | 6.4 | |

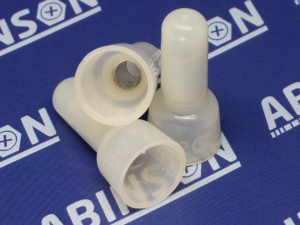

15217 | 1-3 | 5.5 | 7 | 20.8 | 3.0 | 8.2 | |
15218 | 2.5-6 | 6.9 | 9 | 24.5 | 3.8 | 10.6 |
